Isolated DeviceNet/CAN, Ethernet and Serial Gateway

Part Number: AXM-ECG52254-M001

Downloads:

	AXM-ECG52254-M001 Brochure
	AXM-ECG52254-M001 Hardware Reference Guide

The Archronix AXM-ECG52254-M001 is a hardware platform offering fully isolated CAN and DC power supply that is ideal for the development of industrial CAN and Serial to Ethernet gateways. Two switched Fast Ethernet ports are provided to support both star and daisy-chain network topologies. A non-isolated version is also available at lower cost with external AC/DC adapter (AXM-ECG52254-M002).

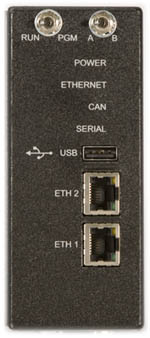

AXM-ECG52254-M001 Front Mode Switches Status LEDs USB Port Dual Ethernet Ports

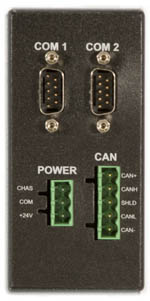

AXM-ECG52254-M001 Side 2 DB9 Serial Ports 24VDC Power Input CAN Port

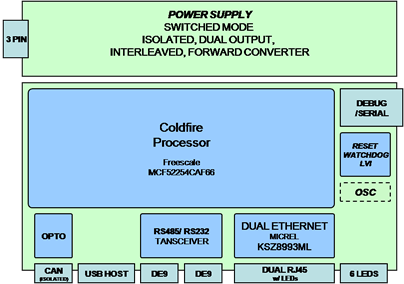

Processor Board:

• Freescale MCF52254 with ColdFire V2 CPU at 66MHz
• Integrated 512KB Flash, 64K SRAM
• Isolated DEVNET/CAN Interface with Isolated Power
• Dual port Switched Ethernet for Daisy Chain Topology
• USB 2.0 Full Speed HOST
• 2 Multi-Protocol Serial Ports (RS232/RS485)
• SuperCAP Backed SRAM and Real Time Clock (12Hrs)
• Hardware Watchdog and Low Voltage RESET
• Serial I2C EEPROM for Configuration
• 1 RS232 Serial and BDM Debug Port
• 6 LED, GPIO Interface (unbuffered)
• Complimentary MQX RTOS, TCP/IP and USB Stacks
• RoHS Compliant
• Form factor 4” x 3.5”
• Industrial Temperature Range (-40 to 85°C)

Power Supply Board:

• Dual 5V/3.3V Isolated 15W supply
• 16V to 40V Input voltage Range
• Interleaved Current Mode Controller
• Integrated detachable Terminal Strip
• Common Mode Choke input stage
• Extremely low input current ripple
• RoHS Compliant
• Form Factor 1” x 3”
• Industrial Temperature Range (-40 to 85°C)

Ordering Information:

Part Number	Description
AXM-ECG52254-M001	FULL INDUSTRIAL ISOLATED VERSION c/w Isolated DC Power Supply c/w Isolated CAN
AXM-ECG52254-M002	NON-ISOLATED VERSION c/w Non-Isolated AC/DC Supply c/w Non-isolated CAN
AXM-PS2400-M533	ISOLATED 16W POWER SUPPLY 24VDC to 5Vdc and 3.3Vdc Power
