uP2000 Automation Device

Note: This product is superceded by uP3400

Downloads:

uP2000 Brochure

From concept to product development and integration, ArcX provides a simple, innovative and cost effective I/O solution to meet our customer’s specific design and functional requirements.

The µp2000 integrates numerous discrete components onto a single PCB, elminating wiring errors and reducing overall size. An industry proven processor manages communications, operator interface, and I/O mapping to allow the device to appear as a simple remote I/O to the Line PLC processor. The µp2000 incorporates Real Time Automation’s Common Industrial Protocol (CIP™) stack to allow communication via industry standard EtherNet/IP&trade or DeviceNet&trade.

uP2000 Front

  • 8 Tri-color LEDs
  • 320x240 Monochrome Touchscreen
 uP2000

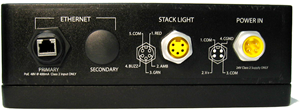

uP2000 Top

  • EtherNet/IP
  • Optional DeviceNet
  • Ext. Stacklight
  • 24VDC Power In
 uP2000

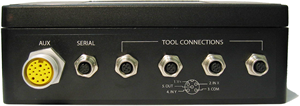

uP2000 Bottom

  • 10pin AUX Mini MDC
  • 8 pin Micro Serial
  • 5 pin Tool Connectors
 uP2000

I/O

  • Inputs for up to 8 tools, or up to 5 area sensors
  • Two (2) RS232 ports:
    • Primary: Support for Magswipe security badge input to track accountability
    • Secondary: Support for Bar code reader or Auxiliary COM port
  • Two (2) user-definable relay outputs (120 Vac @ 5A)
  • Inputs are capable of monitoring battery voltage, temperature, volume, etc

Operator Interface:

  • Large LCD display for real-time feedback of current recipe including tool satisfied condition, tool counts and process/conveyor information
  • Touch Panel Interface allows intuitive interaction
  • Tri-color LED status lights clearly indicate individual tool states, and are complemented by an overall stack light
  • Compact and robust design
  • ODVA certified EtherNet/IP™ or DeviceNet™ communication

Power/Flexibility

  • Class II power supply compliant for low power consumption
  • Integrated Power over Ethernet (PoE) technology allows data and power transmitted over single twisted pair
  • Automatic input power switching
