uP3040 Web Enabled Logic Controller Lite

Part Number: AXM-UP3040-0000

Downloads:

uP3040 Brochure
uP3040 Hardware Reference Guide
WAT Simulator software

The uP3040 Web enabled Logic Controller is the third generation in a series of high performance, highly integrated Logic Controllers designed to replace more expensive systems requiring a separate HMI, Processor, Network Interfaces and multiple I/O points. The architecture is built on an open platform and leverages the ever increasing FOSS (Free or Open Source Software) model. Our freely available WAT programming API allows for easy integration into HTML/JavaScript and more object oriented programming languages. No cost provided sample software and tools allows the developers to implement and test applications on a standard desktop PC with easy deployment to the unit for production in mere hours.

The system employs the proven Linux Operating System, allowing for multiple programming languages and programming models such as simple web pages to more sophisticated C++ embedded applications. With the incorporation of Real Time Automation’s Common Industrial Protocol (CIP™) stack communication via industry standard EtherNet/IP™ and DeviceNet™ we offer reliable connections to a variety of industry standard PLC’s and Automation equipment. Additionally, other protocols such as FL-net, ProfiBus, and ModBus can be added to the system as an option.

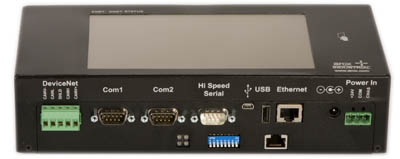

uP3040 Front

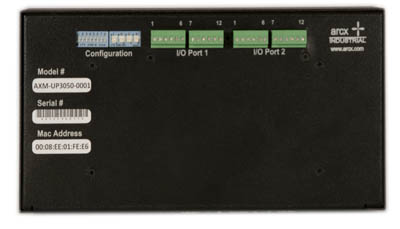

uP3040 Back

Features:

  • The high level of integration provides an HMI Interface, dozens of Input/Output points and a powerful processor to carry out the majority of Logic Control tasks with no additional hardware. The high performance screen and touch panel interface provide a top quality user experience and supports both Full Motion and Static high resolution color images in an optimal 7” display.
  • The compact design allows for the mounting of the unit within close proximity to an operator with minimal mounting hardware.
  • Flexible communication is provided through two Network Data Paths, allowing segmenting the “Time Critical” control functions from lower priority data gathering functions when needed. With a variety of choices available, the default port uses Ethernet RJ45 with PoE and the other port can be chosen that best fits customer requirements.
  • Multiple power sources allow for supply from a Class II 24Vdc supply or via an Ethernet cable fed from a PoE isolated mid-span power source. Using PoE further reduces wiring requirements, system complexity and cost.

Display:

  • Integrated LCD 800x480 16bits per pixel ,contrast ratio 240, 320 nits
  • Integrated 4-wire resistive touch screen
  • Five (5) High Brightness LEDs Vertically aligned (Red, Yellow, Green, White, Blue)
  • Integrated HID® RFID Reader for Weigand badges

I/O Board:

  • Four (4) 24V NPN/PNP Inputs
  • One (1) RS232 port for Bar Code readers or auxiliary use
  • Two (2) Optically Isolated Inputs and
  • Four (4) User definable Form C Dry Contact Relay Outputs
  • USB Host/Slave and USB OTG Host Connections
  • Inputs for up to 4 tools or 3 area sensors
  • Inputs are capable of monitoring battery voltage, temperature, Pressure, Flow, volume etc.

Processor Board:

  • Freescale® ARM 1136JF-S i.MX31 processor running up to 532 MHz
  • Memory : 64MB NAND flash, 2MB NOR flash
  • Low-power 266 MHz DDR SDRAM memory 128 MB
  • High speed RS-232 Serial
  • High speed SPI I/O channel interface to I/O Boards
  • One (1) USB 2.0 high-speed Host Interface
  • One (1) USB 2.0 high-speed OTG Interface
  • 16-bit stereo DAC, 13-bit ADC
  • Stereo IN, Stereo OUT, HEADPHONE
  • I2S compliant audio codec (Freescale MC13783)
  • 10/100 Base-T Ethernet controller, with PoE (802.3af compliant)

Interfaces:

  • 10/100 Mbit Ethernet w/ PoE on RJ45
  • OPTIONAL: Isolated 5pin DeviceNet on Micro MDC
  • OPTIONAL: Secondary Ethernet on RJ45 (no PoE)

Software:

  • Linux 2.6.x
  • WebKit under Qt/Embedded
  • GStreamer for Audio/Video
  • Real Time Automation CIP Stack

Network Protocols:

  • EtherNet/IP™
  • DeviceNet™
  • FL-net
  • ProfiBus
  • ModBus
  • TCP/IP

Mechanical:

  • Weight: 2.2 lbs (1kg)
  • Size: 10” x 5” x 2”
  • Operating Temperature: -10ºC to +60ºC
  • Storage Temperature: -40ºC to +85ºC
  • Humidity:40% non-condensing
  • Enclosure Type: Formed 16gauge Zinc Plated Steel
  • Vibration: 5-17Hz, 0.1” double amplitude displacement 17-640Hz, 1.5G acceleration peak to peak
  • Shock:10G (11mS) peak-to-peak acceleration

Device Management:

  • On-Screen configuration
  • Management Console (AXMC)
  • Internet Explorer® v6 or Later
  • AXMC supported on Windows® Vista™**, Windows® Server 2003, Windows® XP SP2**

Package Contents:

  • uP3K Device in ShipSafe packaging
  • CD containing AXMC management software
  • User and Installation Manual
  • Warranty registration card

Warranty:

  • 1 Year Limited

Customization:

Our experienced design team is available for customizing a complete system solution using the uP3000 and your existing PLCs and Automation equipment. From development of an efficient System Architecture to customization and optimization of the unit firmware, we can deliver a reliable, maintainable and cost effective solution in a short time.


Ordering Information

Part Number Description
AXM-UP3040-0000 Standard uP3040
AXM-UP3050-0000 uP3040 with FL-net
Accessories
AXM-UP3100-B001
AXM-UP3100-B002
AXM-UP3100-B003 		Strain relief kit
AXM-UP3100-B001 6 Hole Aluminum Mounting Plate

For product customization, please contact Archronix Design.
