Products

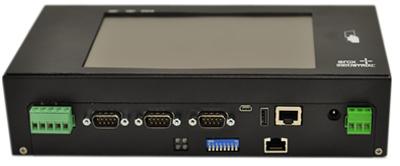

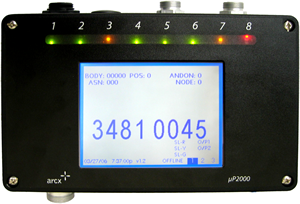

	uP3040	uP3050	uP3190	uP3400	uP2000

LCD Display	800x480	800x480	800x480	800x480	320x240
Tricolor LEDs	-	-	8	8	8
Internal Stacklight	YES	YES	YES	YES	-
Weigand® HID Reader	YES	YES	YES	YES	-
24V Inputs NPN/PNP	4	4	16	16	8
Analog Inputs (0-10V)	2	2	-	-	-
24V Outputs NPN/PNP	-	-	16	16	4
Anlg Outputs (0-10V)	2	2	-	-	-
Opto Isolated Inputs	2	2	2	2	-
Form A Relay Outputs	1	1	-	-	-
Form C Relay Outputs	3	3	2	2	2
External Stacklight	-	-	YES	YES	YES
RS-232 Ports	-	-	3	4	2
RS-232/485 Ports	2	2	-	-	-
Hi Speed Serial	1	1	-	-	-
10/100Mb EtherNet/IP™	YES	YES	YES	YES	YES
PoE 802.3af	YES	YES	YES	YES	YES
Devicenet™	YES	YES	YES	YES	-
Fieldbus	-	FL-net	-	FL-net	-
USB 2.0 Host	1	1	-	-	-
USB 2.0 OTG	1	1	-	-	-
Weight	2.2 lbs	2.2 lbs	7 lbs	7 lbs	7 lbs
Size	10”x5”x2”	10”x5”x2”	10”x6”x3.5”	10”x6”x3.5”	10”x6”x3.5”

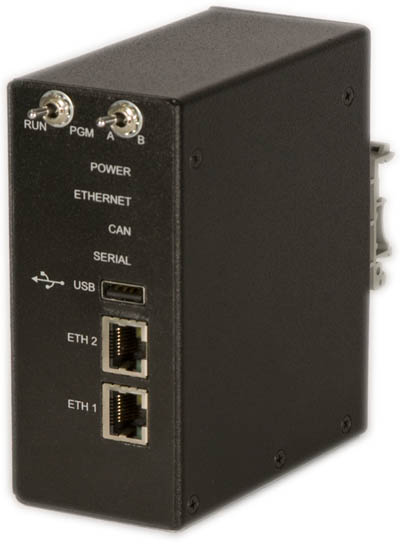

DeviceNet/CAN, Ethernet, Serial Gateway

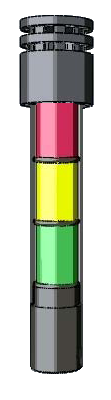

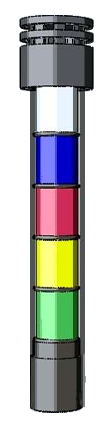

3 Color Stacklight	5 Color Stacklight
